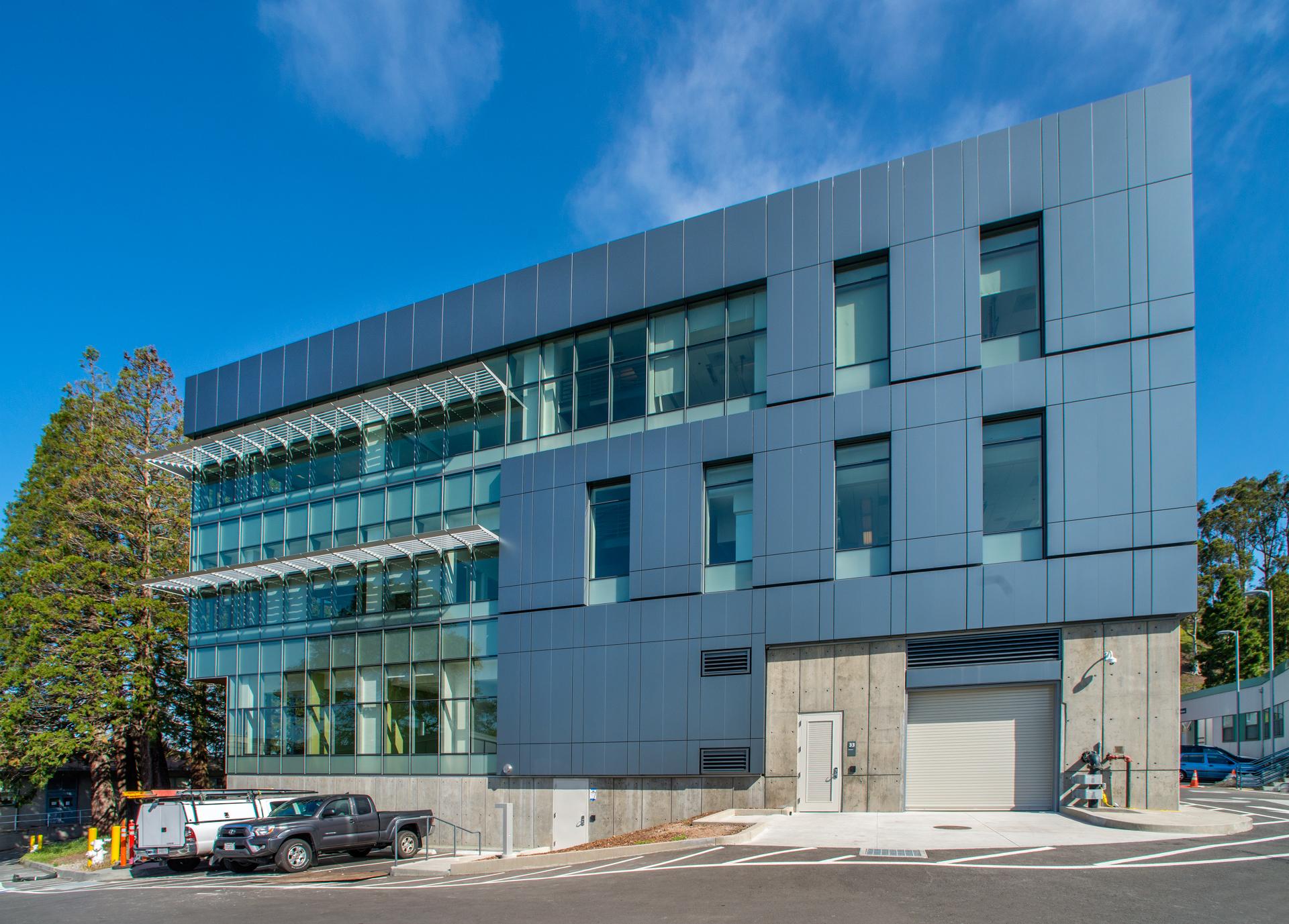

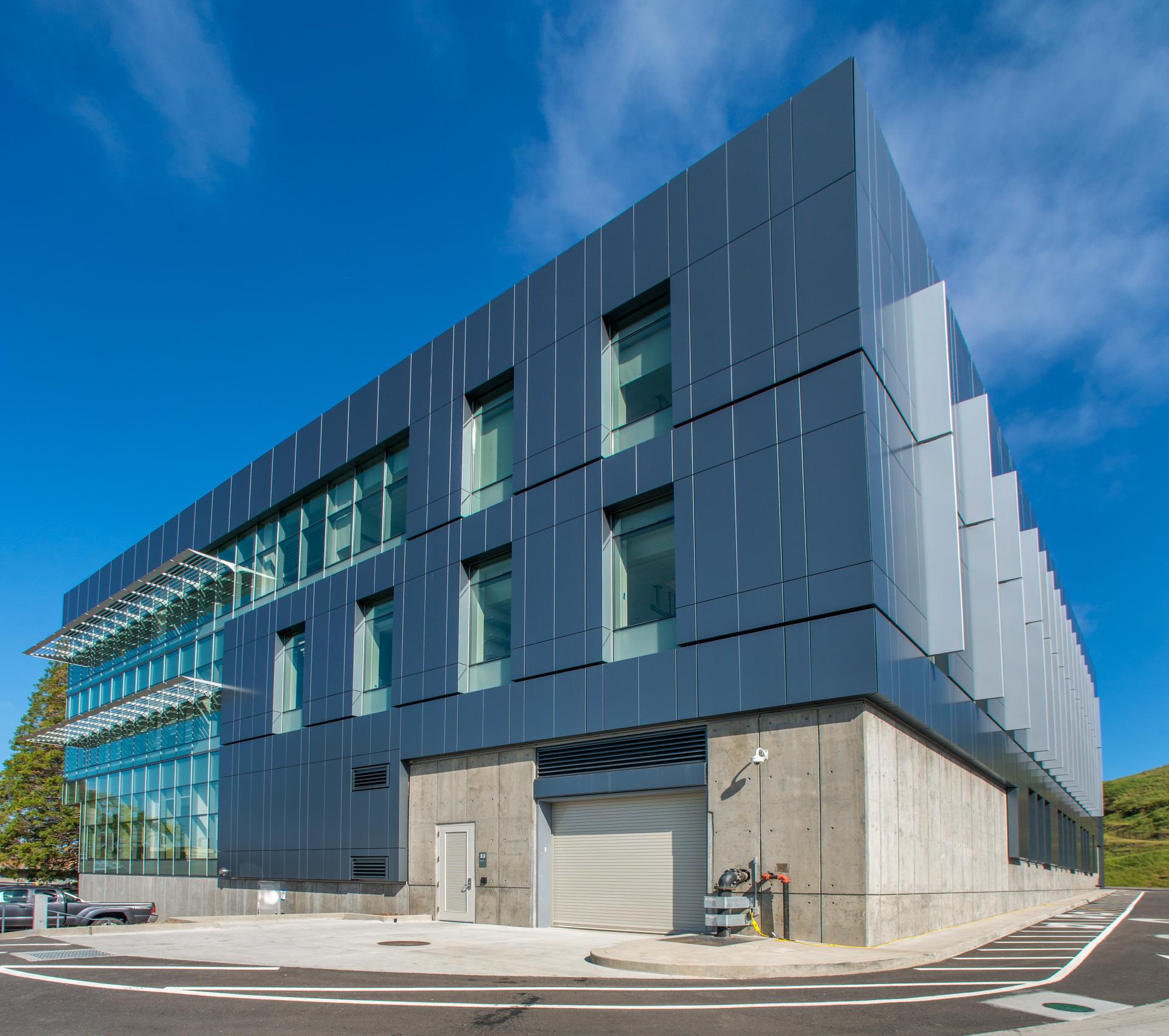

An open lab and office space with a steel moment frame system and a unique cladding system designed using BIM.
Customized Solution

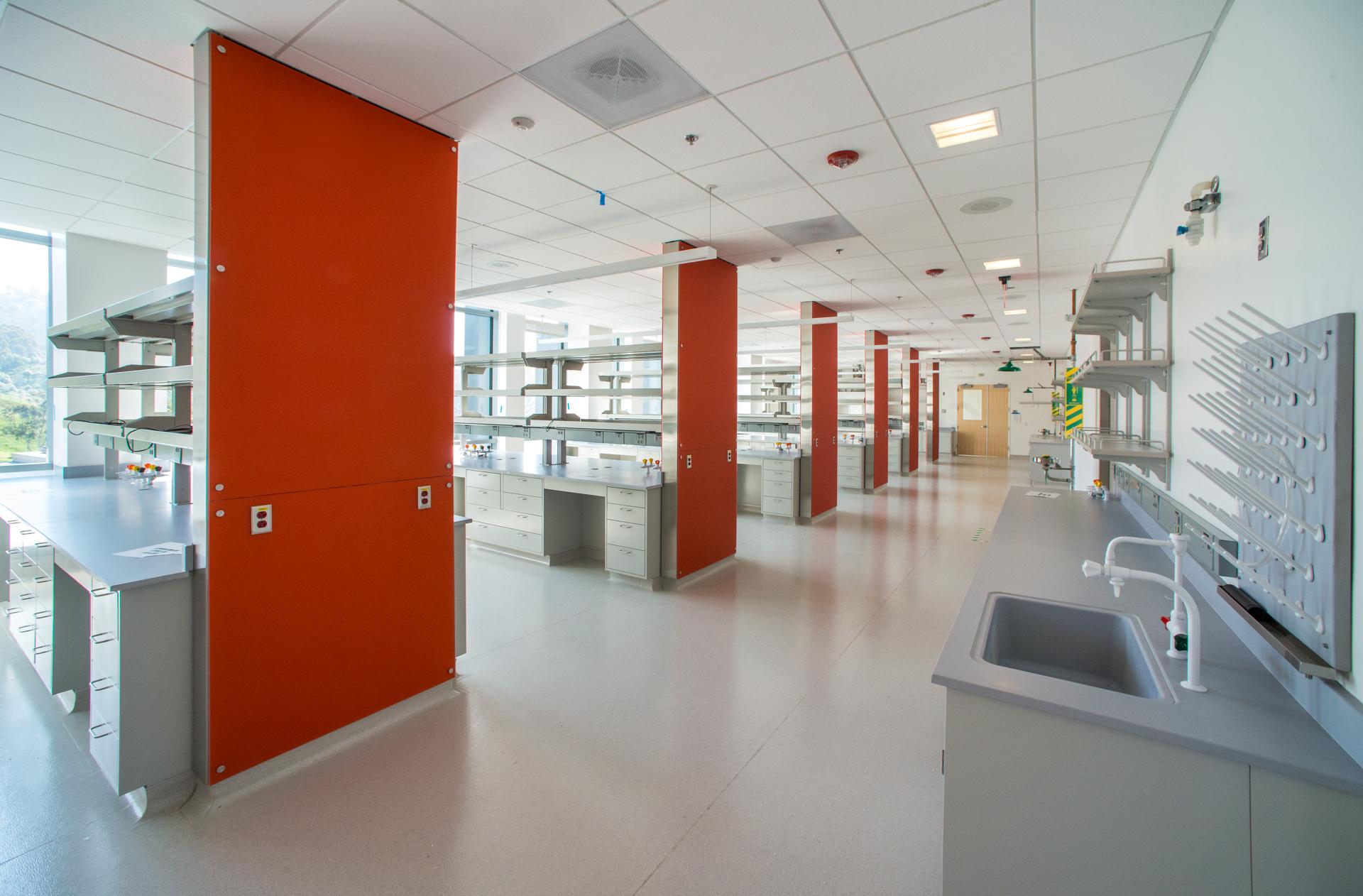

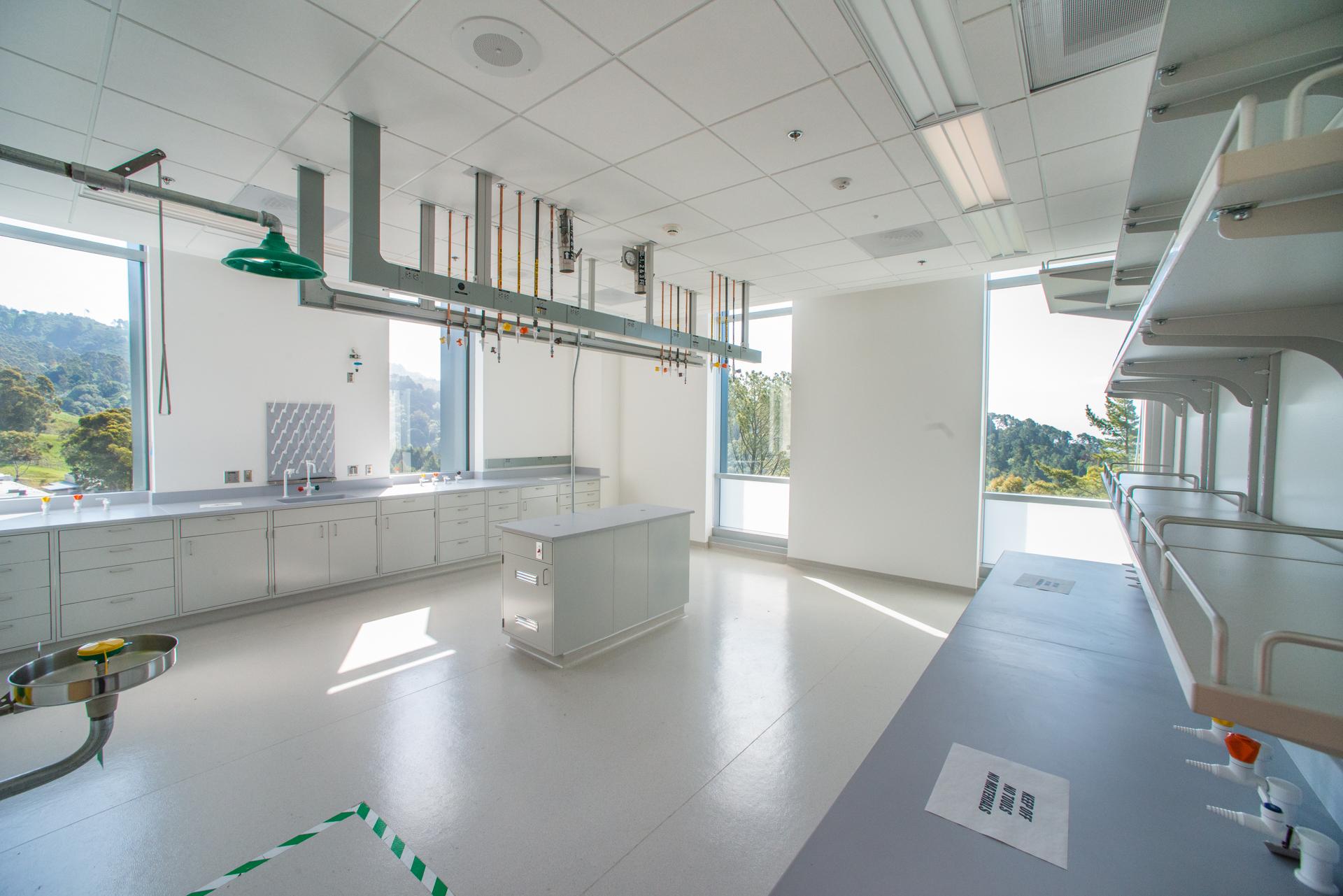

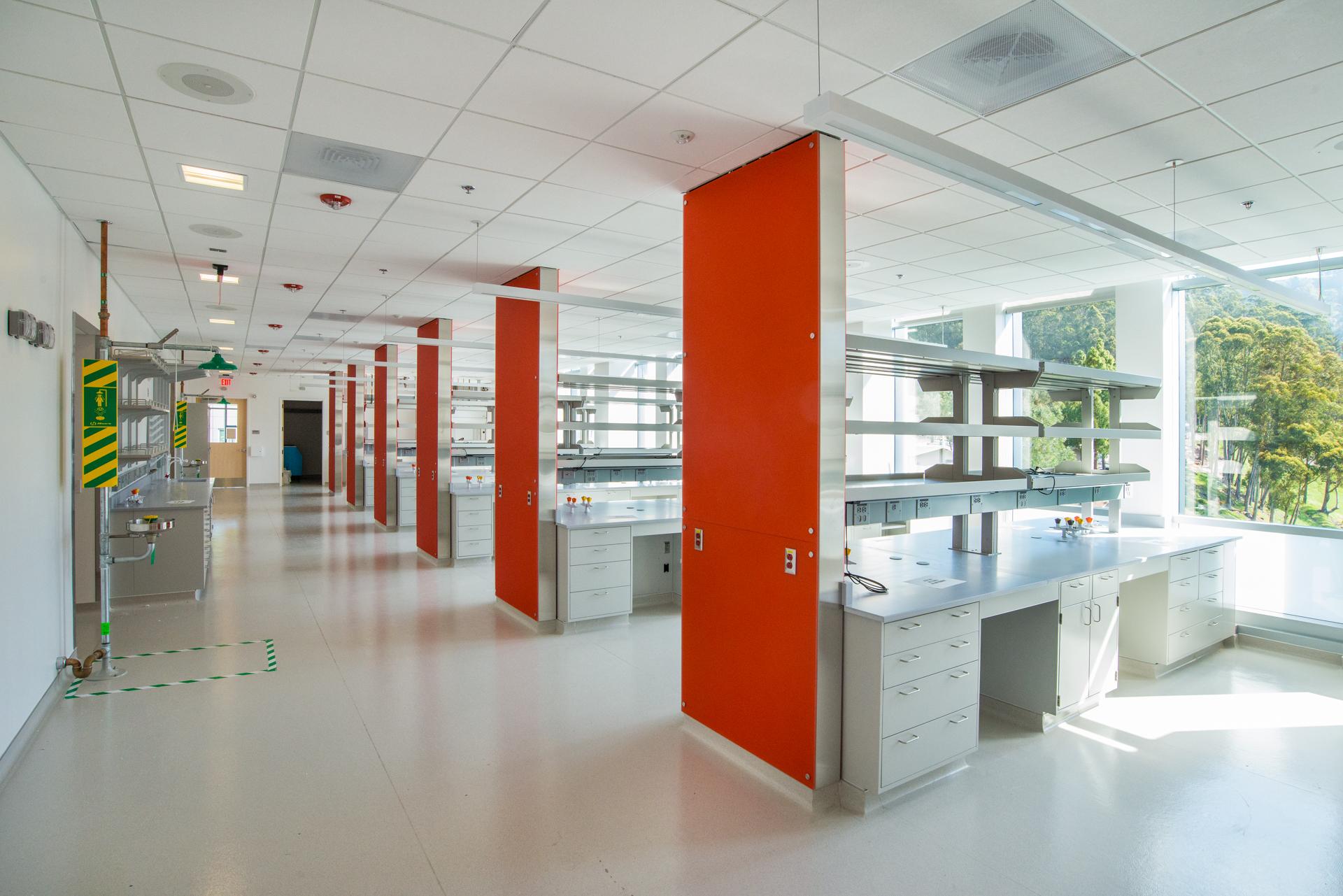

- This 43,000 s.f. 3-story laboratory and office building have a special steel moment-resisting frame structure with connections that will yield and dissipate seismic energy during large earthquakes. The perimeter steel moment-resisting frame structure allows for flexible interior spaces and minimizes structural interference with the multitude of utility elements to support the laboratories.

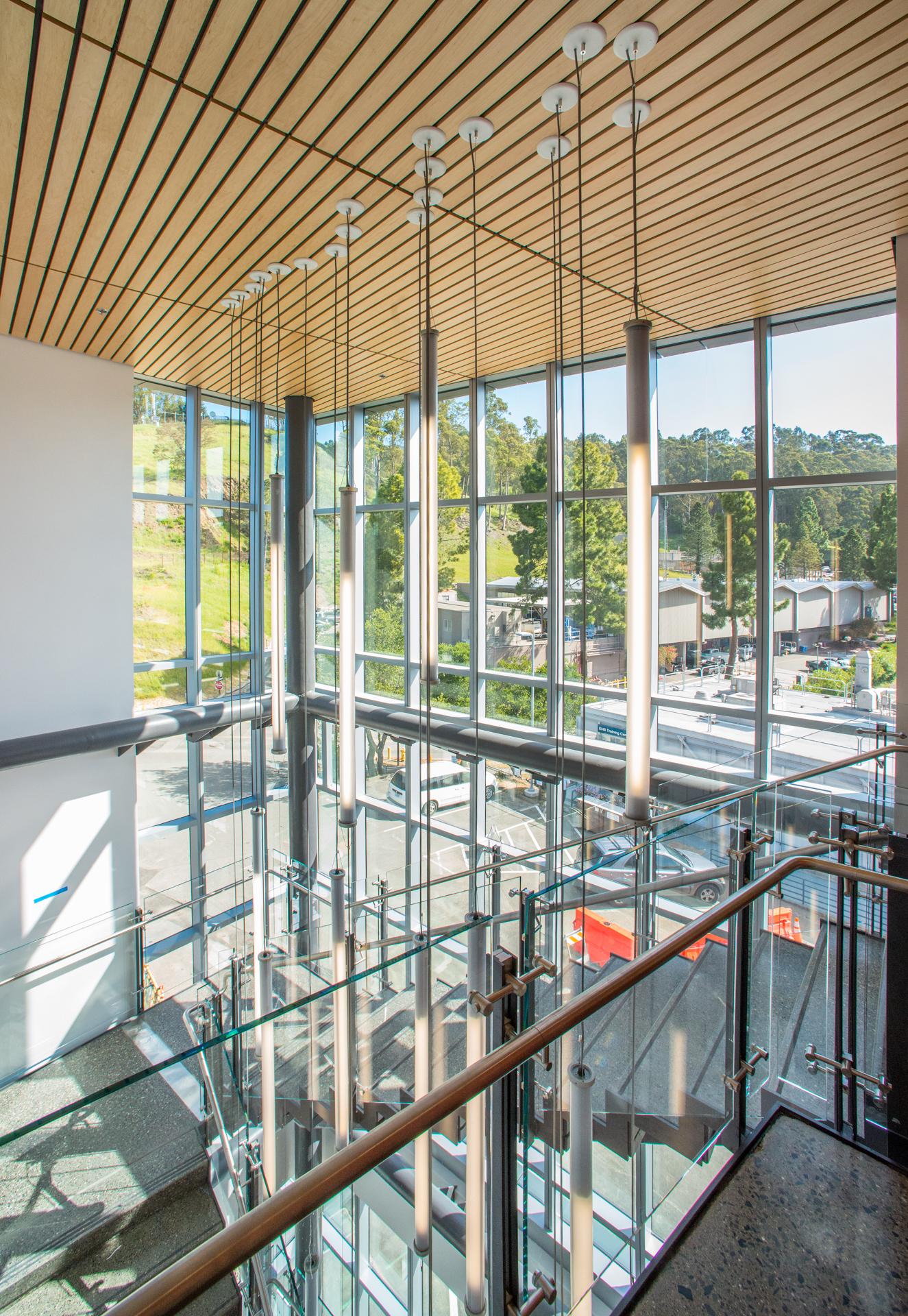

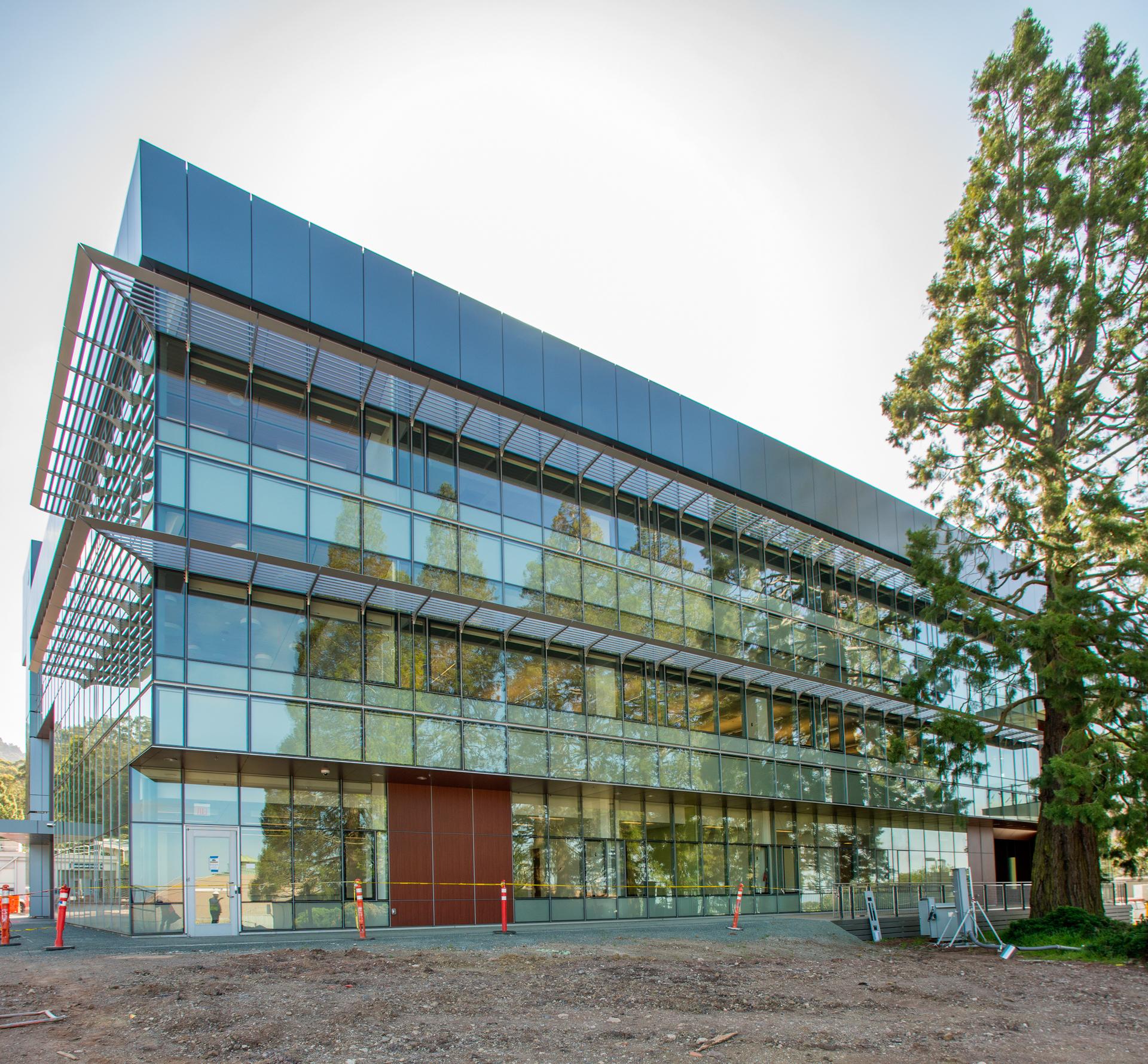

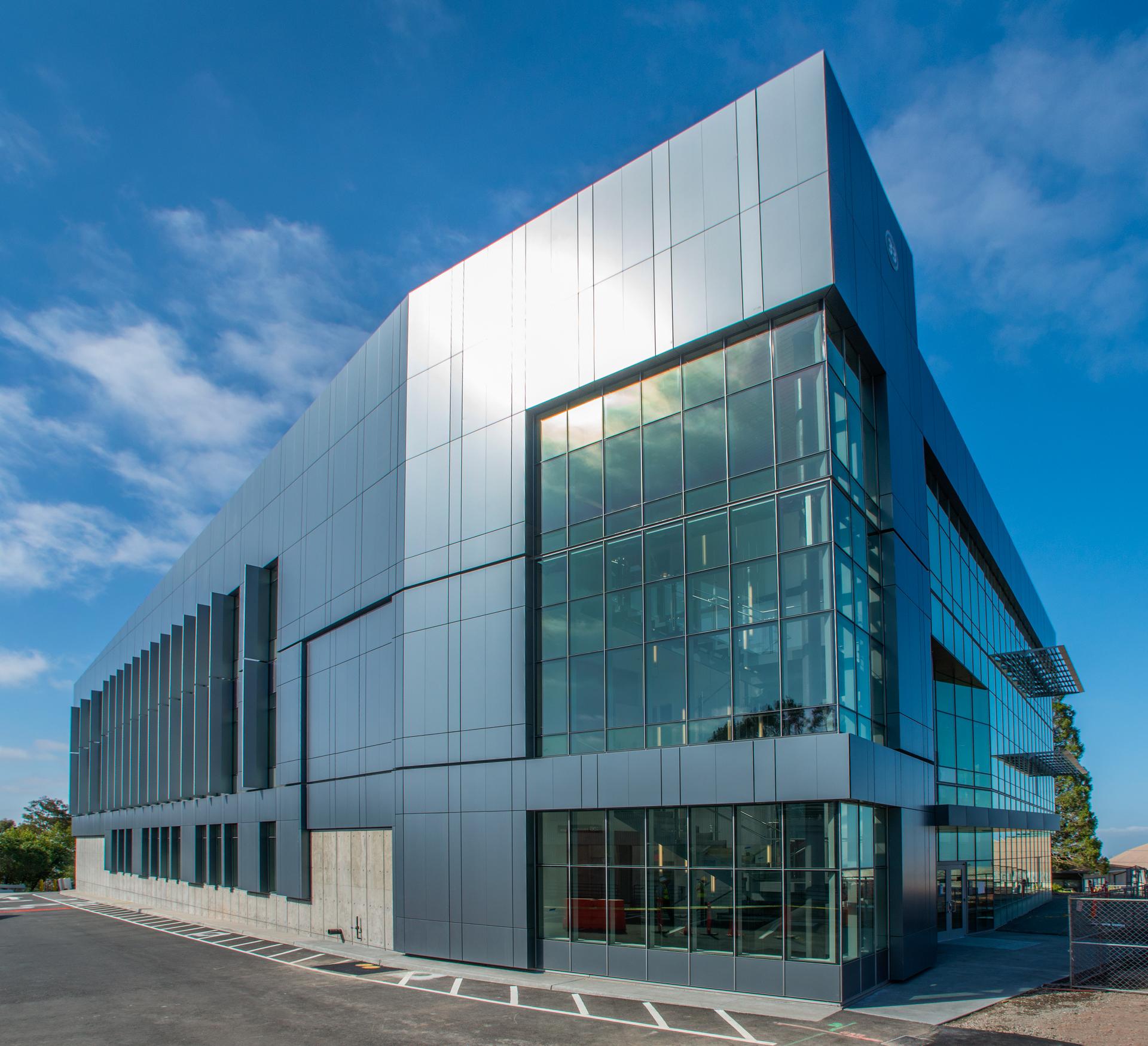

- At the entry, there is a tall glass curtain wall and atrium space that is captured by light steel framing and a special steel grand stair. A unique curtain wall system and light shading elements help reduce energy costs.
- With the high air change demands of lab spaces, there is a considerable amount of mechanical equipment and a tall exhaust stack that was designed through BIM coordination process. The project also includes a central utility plan near the site, which is founded on drilled piers on a steep slope.
![LBNL, Building 33, General Purpose Laboratory](/_next/image?url=https%3A%2F%2Fapi.forell.com%2Fwp-content%2Fuploads%2Flbnl-b33-general-purpose-lab-03.jpg&w=3840&q=75)
![LBNL, Building 33, General Purpose Laboratory](/_next/image?url=https%3A%2F%2Fapi.forell.com%2Fwp-content%2Fuploads%2Flbnl-b33-general-purpose-lab-02.jpg&w=3840&q=75)
Highlights
- Architect: RMW Architecture + Interiors
- Owner: Lawrence Berkeley National Laboratory
- Steel Moment Frame system created better access for extensive M/E/P equipment routing. Stringent vibration criteria was met by stiff structural framing.
- LEED Gold Rating
